Issue(s):
- Cannot complete homing cycle, getting Alarm 8: Pull off travel failed to clear limit switch. Try increasing pull-off setting or check wiring.
Resolution(s):
The machine is too close to the limit switches at the start of the homing cycle.
- Turn OFF the machine, then rotate the couplers to move the machine away from the inductive sensors, on all axes.
- Turn ON the machine, reconnect to gSender, and try running homing again.

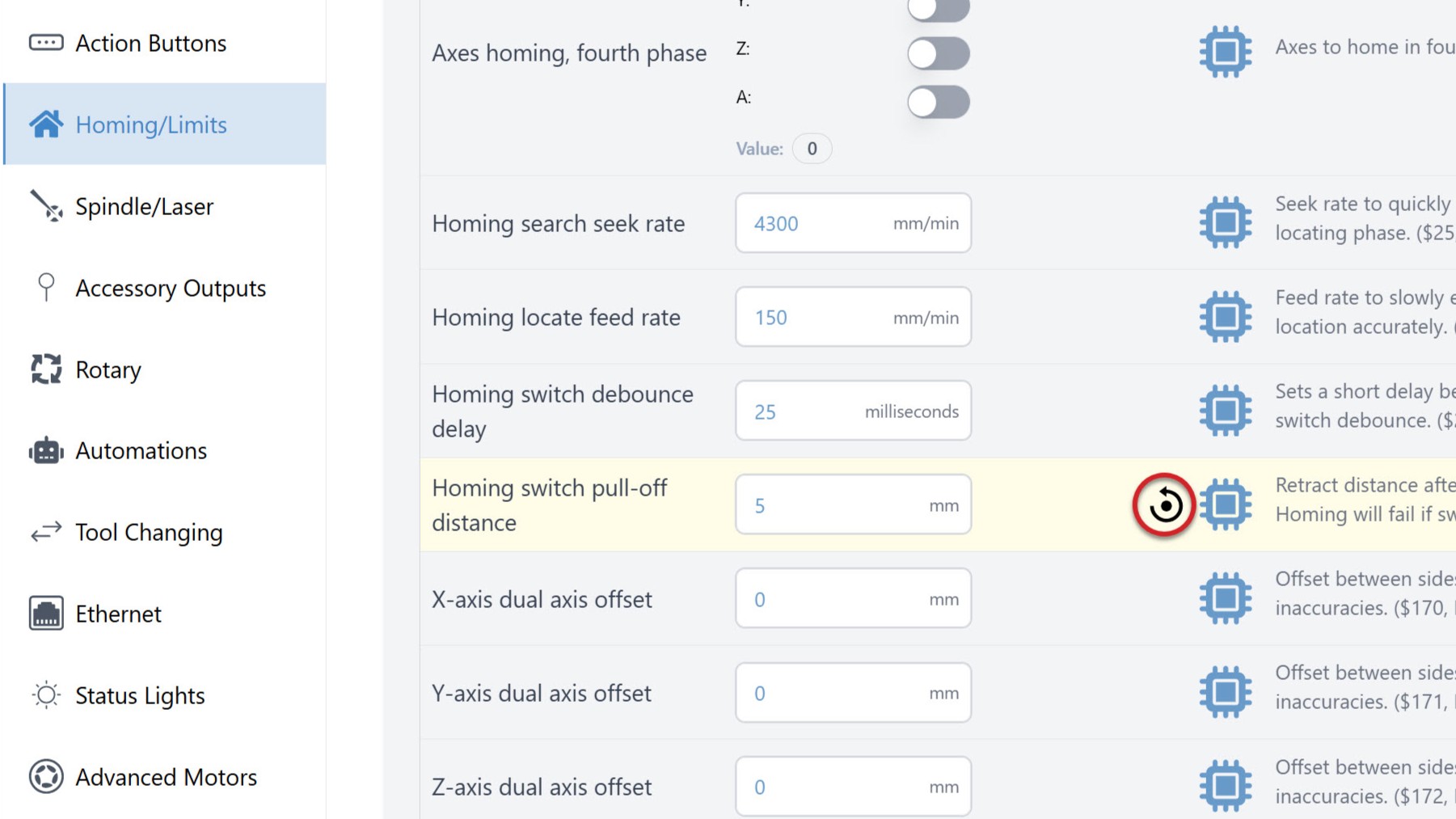

- If homing is still not working, go to Config and check that homing settings are at default values
- If they ARE NOT AT DEFAULT, the setting will be highlighted in YELLOW and there will be a circular arrow button to reset that setting. Press Apply Settings then turn OFF/ON the controller to have the change take effect
