Issue(s):

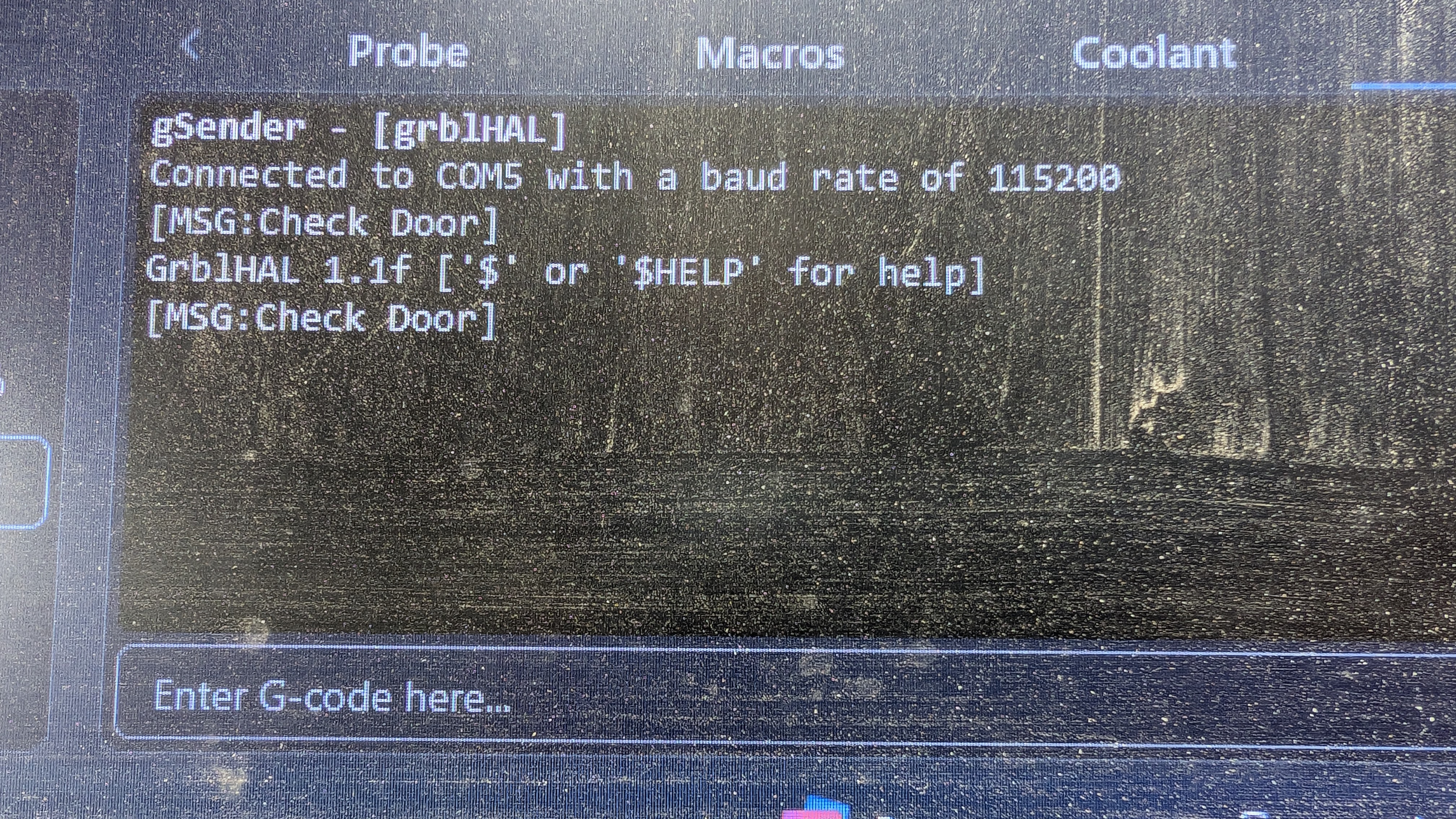

- Door is triggering, machine is prevented from moving when trying to jog
- Firmware settings cannot be reset on gSender's Config
Resolution:
This is due to the door firmware setting getting inverted, therefore if there is nothing plugged into the DOOR input on the SLB/SLB-EXT, it will always stay ON and cause the machine to be in "Hold" state.

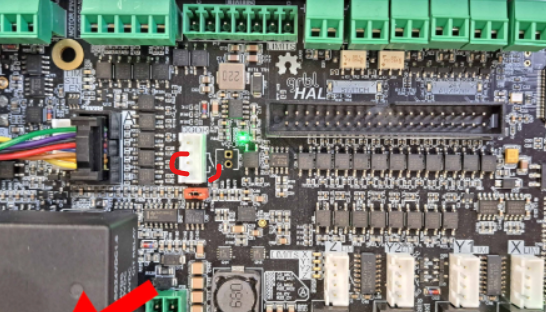

To fix this, first insert a jumper wire on the two pins shown in the photo below.
The controller will think that a door switch is installed, so the Door state shouldn't be triggered anymore.
- Enter $RST=$ into Console, and press Run.
- Then turn OFF and ON your controller.
