An Alarm 10 can occur if there is an issue with the E-stop, sensors, a problem with the closed-loop stepper motors, or a malfunction with the cables. This guide will troubleshoot the motor issues. You can find the E-stop troubleshooting guide here.
Issue(s):
- Alarm 10 during startup
- Alarm 10 during homing
- Triggered closed-loop stepper motor
- Motor alarm shown in console
- Stall light on SLB/SLB-EXT
- Back light of motor flashing
Triggered closed-loop stepper motor
This means that the closed loop stepper motors are experiencing mechanical resistance, like if the machine bumped into something.
You can verify if the motor is an issue by looking at the following:

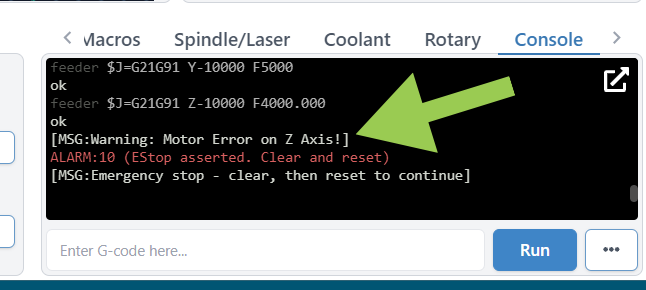

Console section in gSender. Above the alarm there will be a message that will display what motor has been tripped.

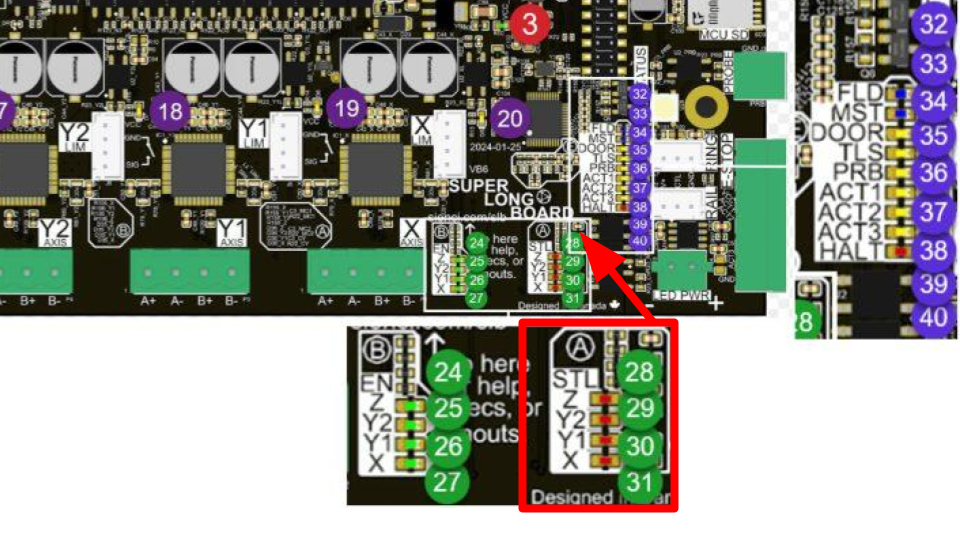

The controller’s lights, as outlined in the graphic below. Yellow LEDs indicate which motors are affected. If the motor is affected, you should be able to rotate the motor shaft with your hands.
To clear the alarm, you can power cycle the controller.
Bottom right corner of the SLB-EXT

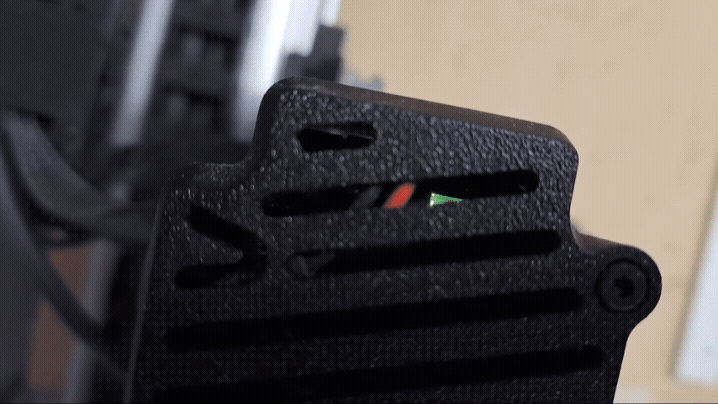

Look at the back of the motors. A motor that has stopped and has triggered the Alarm 10 will have a flashing red LED, there is a brief pause between each section of flashing.
Resolution:
Adjust Sensors
Disable hard limits in gSender. Otherwise you will get an Alarm 1 every time the sensor is triggered and it’s annoying when adjusting them. It’s found under Config, Homing/Limits, then Hard Limits enabled. After you press Apply Settings, remember to turn OFF and ON your controller to have the changes take affect.

For the Z axis
- Raise the spindle to the top.
- Loosen the back sensor nut and move the limit switch towards the spindle
- When the red light on the back turns on, loosen the back nut 1/4 turn more
- Lower the spindle
- Tighten the front sensor nut.
Adjustment shown in video:
For the X Axis
- Move the spindle to the left.
- Stop till there is a 1/16-1/8″ gap between the bump stop and the spindle mount
- Loosen the outside sensor nut and move the limit switch towards the spindle
- When the red light on the back turns on, loosen the back nut 1/4 turn more
- Tighten the inside sensor nut.
- Once complete, enable your hard limits.
For all axes, if you are using integrated bump stops, make sure to screw in the inductive sensor fully.
Test Blue Relay Light
If the blue light near the relay on the SLB-EXT is OFF throughout the startup process (after E-stop press and release), there could be a short circuit caused by one of the motors. If that is true, please try the following steps:
1. Unplug all the motors from the controller, and then see if the blue light comes on when you restart the controller.
2. Unplug all motors, this time, test 1 motor at a time to see if the blue light comes on after a restart. If the blue light is OFF then we know that is the faulty motor.
Test Motor Cable
Note that Alarm 10 could also be from motor cables incorrectly wired. If there is motor warning, have them look at the back of the motor.
- Flashing red LED, motor was tripped.
- No flashing LED, likely wrongly assembled cable. Check the wiring.
- Make sure they're wired the same as the other motor cables (however, if all 4 axes have motor alarm, most likely it is a motor harness issue on all axes)
