If customers are having issues connecting the Sienci Labs spindle to the AltMill (e.g. Alarm 14 on gSender, r00.0 on VFD), have them follow the steps below.
- Open gSender and run the attached setup code, this will set all EEPROM settings to what they should be.
- Power cycle absolutely everything. Turn off the VFD and the controller. Close gSender
- Turn on the VFD first, then the controller, then connect to gSender. Ensure the VFD is plugged into the back of the controller above the power switch.
- At Spindle/Laser, in Spindle Mode select H-100 in the dropdown.
- In Console, type $spindles and press Run. Check if H-100 is selected as "Current spindle".
- In Console, type M3S10000 and press Run. See if the spindle spins properly. Or use the "Forward" button.
- In Console, type M5 and press Run. See if the spindle stops. Or us the "Stop" button.
Altmill Spindle Firmware Settings

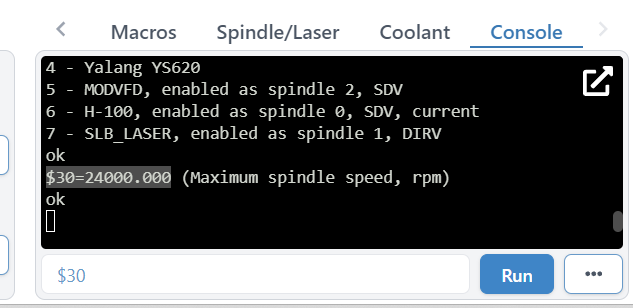

You can confirm the firmware settings by typing the Firmware setting number eg. $30, into the console and hitting run. Match the settings shown in the console with the values below.
$30=24000; Max spindle speed.
$31=7500; Min spindle speed.
$340=5; Spindle at speed tolerance. Default 5.$392=11; Spindle on delay. Default 4 (or higher on later versions)
$395=6; H-100 VFD Spindle. Default 0.
$374=3; Modbus baud rate. Default 3 (19200bps).
$375=50; Modbus RX timeout. Default 50.
$392=11; Spindle on delay. Default 4 (or higher on later versions).
$476=2; Modbus Address. Default 0.
#altmill spindle settings #alarm 14
