Issue(s):
- The Y-axis alignment probe process does not successfully complete
Resolution:
Closed Loop Vortex (4th Axis Mode)
Make sure $101=800 (called Y-axis travel resolution) by going to the Config on gSender.
Or you can go to Console on the bottom of the screen, then type in $101=800 and press Run.
Open Loop Vortex (Rotary Mode)

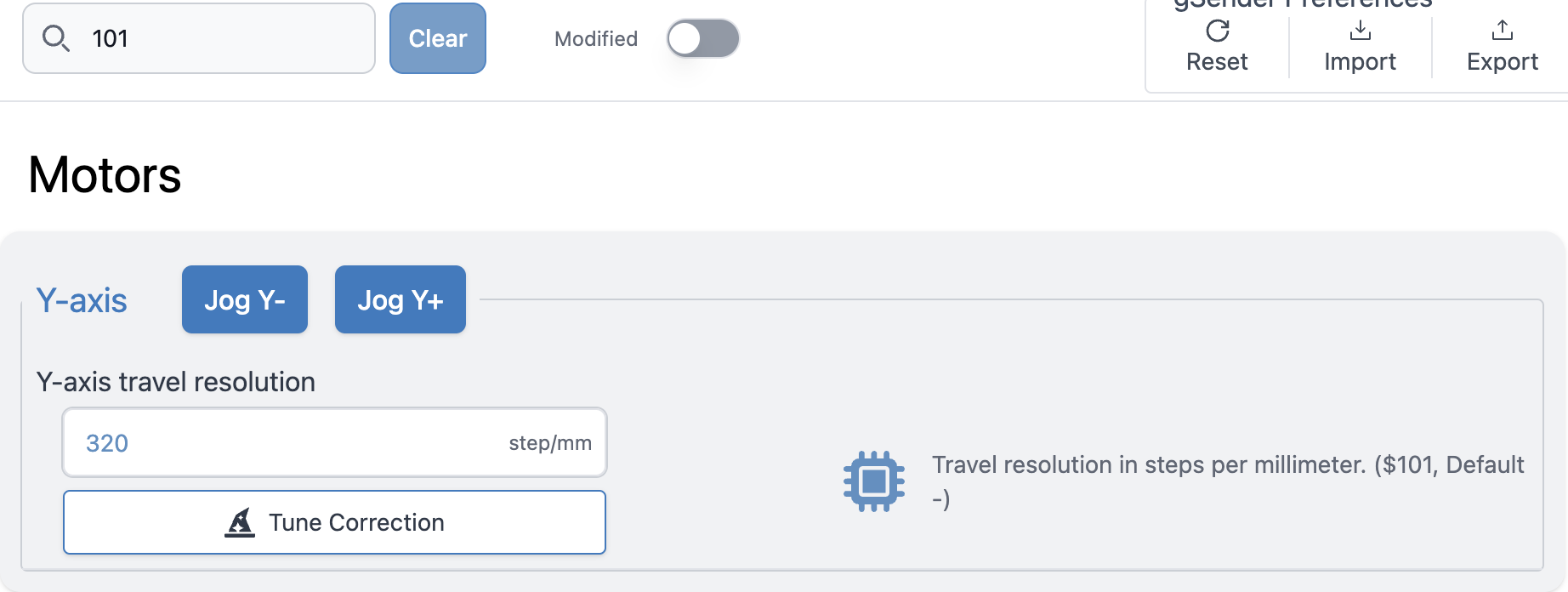

Make sure $101=320 (called Y-axis travel resolution) by going to the Config on gSender.
Or you can go to the Console on the bottom of the screen, then type in $101=320 and press Run.
